PRODUCTS LIST Home > Product Show

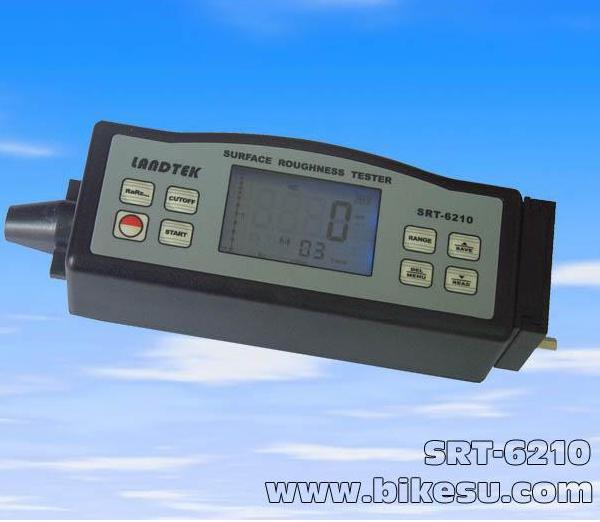

Roughness Tester SRT-6210

Product Numbers: 20133492746

Price: US $0

Product description:Roughness Tester SRT-6210 can be widely applied to the production site, Roughness Tester SRT-6210 can measure the surface roughness of a variety of machined parts, calculate corresponding parameters according to selected measuring conditions Roughness Tester SRT-6210 ina liquid crystal display clearly shows that all the measurement parameters.

INTRODUCTION
Roughness tester features 1. SRT-6210

Roughness Tester SRT-6210 using computer technology, in line with the national standard GB / T 6062 and ISO, DIN, ANSI and JIS four standard, SRT-6210 roughness instrument can be widely applied to the production site, SRT-6210 Roughness Tester measurable kinds of machined parts of the surface roughness, calculated according to the selected measurement conditions corresponding parameter SRT-6210 Roughness Tester LCD display clearly shows all the measurement parameters. SRT-6210 roughness measured workpiece surface roughness, the sensor on the workpiece measured surface roughness tester SRT-6210 is driven by the drive mechanism of the instrument within the sensor do isokinetic glide along the surface to be measured, SRT-6210 rough meter and sensors through the built-sharp stylus feel the measured surface roughness caused by the roughness of the workpiece surface to be measured, the stylus displacement, the displacement amount of the inductance of the inductance coil of the sensor changes, resulting in the phase-sensitive rectifier analog signal produced at the output with the measured surface roughness than the column, after the conversion of the signal after amplification and level into the data acquisition system, DSP chip will be collected data for digital filtering and parameter calculation, SRT-6210 roughness measured results displayed on the LCD display, and can communicate with PC, data analysis and printing.
* Multi-parameter measurement: Ra.Rz.Rq.Rt;
* Precision inductive sensors;
* RC.PC-RC.GAUSS.D-P four filtering methods;
* Built-in lithium-ion rechargeable battery and charging control circuit, high capacity;
* Mechatronic design, small size, light weight, easy to use, built-in standard RS232 interface

Communication with the PC;
* Automatic shutdown function.

This table has two shutdown: a manual shutdown, and another five minutes for keyboard operation shutdown.
* This table can memorize 7 groups of measurement data and measurement conditions to prepare for the next view or even the machine;
* Metric conversion function.

2 SRT-6210 roughness instrument specifications and parameters
Display: blue backlight, display 4-digit, 10mmLCD
Measurement parameters: Ra, Rz, Rq, Rt.
Measuring range: Ra, Rq0.005 ~ 16.00um/0.020 ~ 62.99uinch

Rz, Rt0.020 ~ 160.0um/0.078 ~ 629.9uinch
Accuracy: not greater than ± 10%
Shows value changes: no more than 6%
Sensor:
Measuring principle: Inductive
Radius: 5um
Material: Diamond
Dynamometer: 4Mn (0.4gf)
Angle: 90 °
Longitudinal semi by: 48mm
The trip 17.5mm/0.7inch of the biggest driving
Sampling length (optional) 0.25mm, 0.8mm, 2.5mm
Drive speed:

Measurement is

When sampling length = 0.25mm, Vt = 0.135mm / s

When sampling length = 0.8mm = Vt = 0.5mm / s

When sampling length = 2.5mm Vt = 1mm / s

Return Vt = 1mm / s
Filter contour

The filter outline of: RC

PC-RC

GAUSS

No filtering outline: D-P
Resolution:

0.001um when the measured value <10um

0.01um when the measured value of the measured value ≤ ≤ 100um

0.1um when the measured value ≥ 100um
Evaluation length Ln: 5L
Power supply: Built-in lithium-ion rechargeable battery a
Working environment:

Temperature: 0 ~ 50 ℃

Humidity: <80% RH
Dimensions: 140 × 52 × 48mm
Net Weight: about 420 grams
