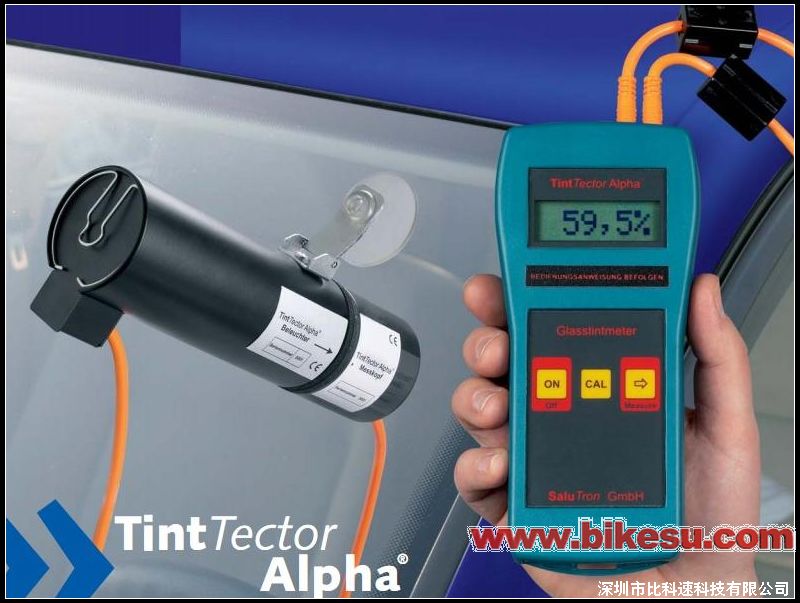

Tint Tector Alpha Window Tint Meter

Product Numbers: 201334153926

Price: US $0

Product description:Tint Tector Alpha,Window-Tint-Meter Split transmittance detector used in automobile manufacturing, aerospace, glass and other industries; detect cars tinted glass, all kinds of glasses, sunglasses, sun protection film transmittance.

INTRODUCTION

The gauge is intended for use at technical car inspection centers, during routine police checks for compliance with new regulations and during the production of the vehicle windows and/or the maintenance thereof. To this effect the gauge complies with ISO 3558 and is suitable for a single person to operate - it's so simple, fast and easy to use.

And this is how it works: Attach the illuminant source to the clean outside windscreen or side window with the aid of the integrated suction cups and place the detector head on the inside of said window, carefully aligning the two parts. Integrated magnets in both the light source and the detector protect them from falling. The result (the indicated measurement is the transmittance in percentage, defined as the ratio of the absorbed by the glass to the light onto the glass) is displayed after a few seconds on the LCD creen once the measurement sequence has been initiated.

Characteristics:
High repeatability ≤ 0,2 %
Precise characteristics complying with the spectral response of the human eye during daytime
Simple calibration procedure
High quality certified optical system
Optical characteristics comply with ISO 3558
Ease of operation
Battery powered
Complies with EMC
3 years warranty

Illuminant source: Type A
Colour temperature of illuminant source: 2856K ± 50K
Optical detector: complying with V(lambda) human eye sensitivity
Measured quantity: % light transmitted
Measuring range: 0 bis 100%
Maximum glass thickness: 10 mm
Measuring accuracy for entire range: ≤ 2%
Temperature range: 5 to 40°C
Relative humidity: < 90%
Atmospheric pressure: 860 to 1060 hPa
