PRODUCTS LIST Home > Product Show

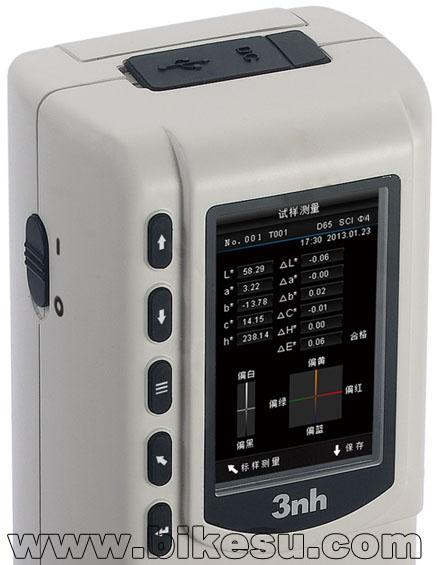

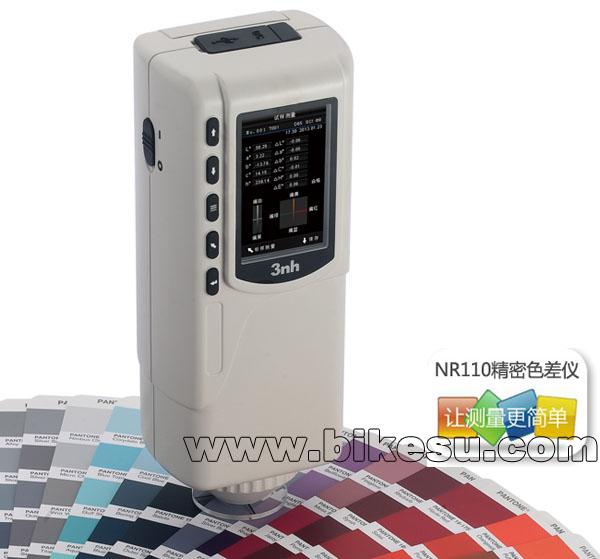

NR110 colorimeter Introduction

Product Numbers: 2013618104339

Price: US $

Product description:NR110 colorimeter from imported equipment to localization, 3nh three ex Chi NR110 precision colorimeter is an iconic color detection industry milestone!

INTRODUCTION

NR110 colorimeter Introduction
Ten years, NR110 colorimeter from imported equipment to localization, 3nh three ex Chi NR110 precision colorimeter is an iconic color detection industry milestone!
NR110 is based on the CIE (International Commission on Illumination) the relevant standards, national standards for research and production of precision instruments. The colorimeter using the new import key components, carefully designed, with accuracy and stability, simple operation, easy to learn, affordable and so on.
NR110 used in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, plastics, pigments, paints, inks, printing, metal, photography, toys, food, medicine and other industries color quality control, color detection.

Technical Specifications
Test geometry 8 ° / d
Measuring caliber Φ4mm
Stable measurement face a large area and small area measuring convex face end
Positioning light positioning and cross positioning
Silicon photodiode array detection sensor
Color space CIE L * a * b * C * H * CIE L * a * b * CIE XYZ
Color difference formula △ E * ab △ L * a * b * △ E * C * h
Optional illuminant D65
Blue LED excitation light source device
Repeatability ≤ 0.08ΔE * ab white standard plate measuring 30 times the average
Taiwan difference between ≤ 0.50ΔE * ab
Storage capacity of 100 standard 20,000 samples
Weight 500g
Size 205 × 67 × 80 mm
Power rechargeable lithium-ion battery 3.7V @ 3200mAh
Charging time is about 8 hours to 100% capacity
After charging times can be measured within 8 hours to measure 3000
Lamp Life Warranty 3 years, more than 1.6 million measurements
Operating temperature and humidity range of -10 ~ 40 ℃, 0 ~ 85% relative humidity (non-condensing)
Storage temperature range -10 ~ 50 ℃, 0 ~ 85% relative humidity (non-condensing)
Data Interface USB
PC software CQCS3 high-end color management software quality
Printer miniature thermal printer (optional)


NR110 precision colorimeter product advantages
1, built-in whiteboard parameters, with no per check, fast start measuring
2, dual orientation: light positioning innovation patent and crosses precise positioning
3, two switchable measuring face: a large area and small area measuring stable end face bump
4, the new optical design integrating sphere: the elimination of the main and auxiliary optical path optical path stray light, has the highest measurement stability and accuracy
5,4 mm diameter measurement, vertical design for more measurement occasions
6, the use of high-capacity, rechargeable lithium-ion polymer battery, no need to buy batteries again
7, the high-end configuration CQCS3 PC software, connect a PC computer to achieve more
8, through SCM measurement certification, CE certification, TUV certification by ISO9001 international quality management certification of the big brands Honor Publisher
9, portable structures, small and convenient, easier to measure
10, exquisite design patents, using the traditional dual aesthetic design and trends
11, spent a lot of time investment of high-end mold, product consistency close to 100%
12, high cost, the price war is always one-upmanship. Because large, so cheap!
