Nitto_KOHKI CB-02 CIRCUIT BEVELER

Product Numbers: 201383110503

Price: US $

Product description:Nitto KOHKI CB-02 round pneumatic chamfering machine, easy to carry, for a variety of chamfering contributed to the work. Can be linear curve end face, the inner end may be chamfered.

INTRODUCTION

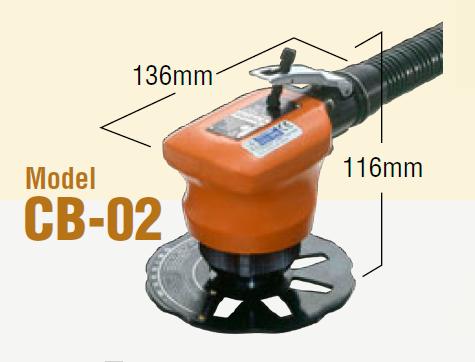

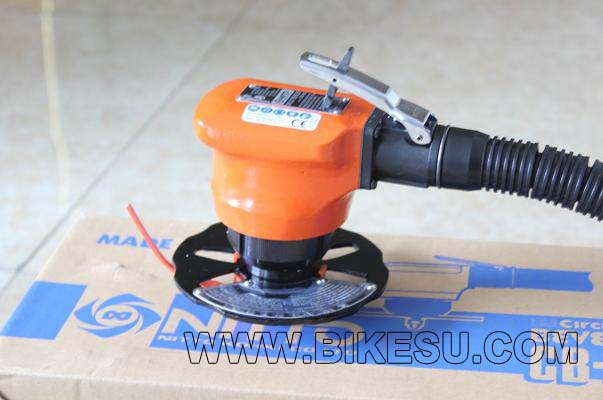

Nitto KOHKI CB-02 round pneumatic chamfering machine

Product Features: CB-02 can be linear curve, face, the face can be carried out within the chamfering

Model: CB-02

Working pressure: 0.6 (6) MPa (kgf/cm2)

Air consumption (no load): 0.4 m3/min

No load number of turns: 13,000 min-1 (rpm)

Chamfering capability: 0C ~ 2C, 2R soft iron

Chamfer angle: 45 °

Body mass: 1.8 kg

Standard accessories

• Chip 9.525 9.525 Angle Angle (C side): 1

• Chamfer Gauge: 1

• Wrench T-9F: 1 根

• Protection cover: 1

• hook shot spanner 58 x 68: 1 根



Other Model: HB-15 portable chamfering machine (electric) chamfering capability 15C

AMB-0307 small chamfering machine (pneumatic) chamfering capability 0-3C, 2R, 3R, 4R

AMBL-0307 small chamfering machine (pneumatic)
