UV-DESIGN UV-int250 UV-integrator

Product Numbers: 201331162021

Price: US $0

Product description:German imports UV-DESIGN UV-int250 ultra-compact UV energy all of its laser engraving machine body, all-aluminum shell, anodized, insurable permanent wear, the user more convenient to carry; overall appearance of a very small size of the instrument for the detection of objects, the lower size requirements, greater flexibility for the detection

INTRODUCTION

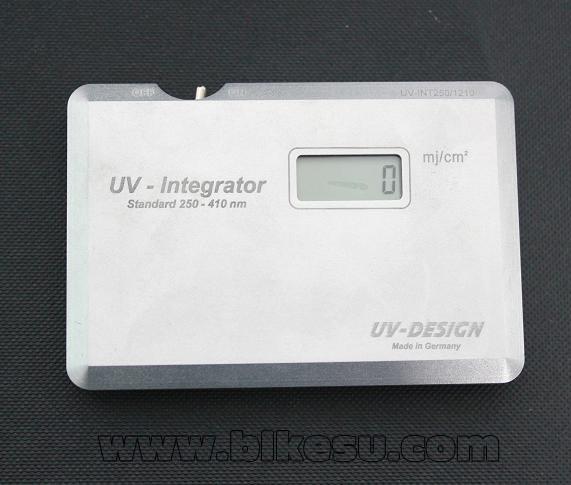

New "German UV-INT250 UV-DESIGN UV-integrator
UV-int250 type energy meter addition to the basic functions of the traditional disc-type UV energy, higher measurement accuracy and more stability.
 The the UV-int250 UV-integrator fuselage are all laser lettering, can be permanently guaranteed wear-resistant aluminum alloy casing, anodized, the user is more convenient to carry; overall appearance of the instrument is very small in size for the detected object lower size requirements, detection even more flexibility, such as: large UV production line, multi-faceted three-dimensional distribution of the UV light source system, precision, compact and low-power light sources are applicable;

Technical data:
Spectral range: UV 250-410nm (nanometer) UVA + UVB
Range of light intensity: 0-5000mW/cm2
Scale range: 0-999,999 mJ/cm2 (mJ / cm ²)
Power Supply: 3.6V lithium batteries
Battery life: about 10,000 hours (Lithiwn lithium battery)
Dimensions: 93L * 63W * 13Hmm (mm)
Weight: 150g (grams)
Ambient temperature: 0 to 70 ° C (degrees Celsius)
Withstand temperatures: 110 ° C (Celsius) under the conditions of continuous exposure to no more than 10s (seconds)
Measurement Accuracy: ± 3%
Calibration cycle: To ensure measurement accuracy and effect, it is recommended to check the cycle of one year.
Warranty period: from the date of purchase within one year from the warranty, except for man-made damage or damage caused by objective factors.

Note:
  Avoid to force frequent shaking instruments or broken instruments;
  Every measurement is completed, please turn off the instrument back into the custody of the box;
  Avoid the front of the instrument LCD directly placed in a strong light or high heat environment measurement.
  Non-professionals, should not open the instrument to adjust or destruction, so that will affect the effectiveness and accuracy of the instrument's detection.
